SCREENINT SI-H XL 300 projektorihissi

Tehdastilaustuote.

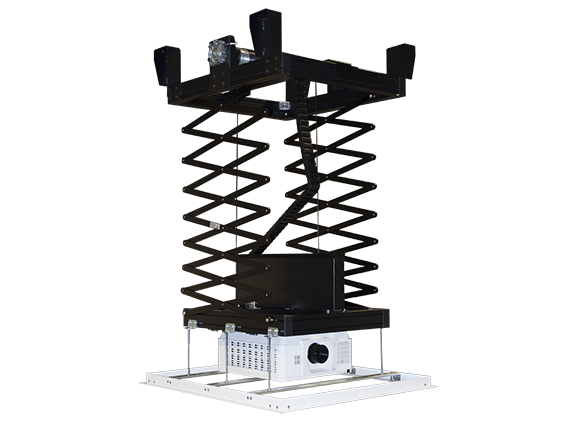

The heavy PROJECTOR LIFT SERIES SI-H XL 300 is a very strong and reliable new range of lifts specifically developed for large venue applications where large projectors need to be moved. These lifts are equipped with heavy-duty but silent motor which assures a fast and stable up-down movement of the projector. Also a SAFETY DEVICE is built-in in order to offer maximum security in case of any failure of the mechanism. The projector anchoring frame movement is controlled by two strong steel cables that are certified for a maximum load of 350 kg. each. A unique and professional cable management system is supplied integrated in the product. This allows to connect safely and tidily the projector with the power and signal cables.

• POWER SUPPLY → 220-230V – 50HZ

• MAXIMUM CONSUMPTION → 360 W

• TORQUE → 80 Nm

• MOTOR SPEED → 12 rpm

• DIMENSIONS CLOSED → 798x576x890 (WxHxD in mm)

• DIMENSIONS OPENED → 798x3576x890 (WxHxD in mm)

• ROLL UP SPEED → 17 sec/m

• ROLL DOWN SPEED → 22 sec/m

• MAXIMUM LOAD OF THE PROJECTOR → 95 Kg

• NET WEIGHT → 71 Kg

• CABLE GATHERING SYSTEM → 50×18 (WxH in mm internal dimensions)

Projektorin max. paino 95 kg,  projektorin alaslasku max. 3565 mm.

Tutustu lähemmin:

https://www.screenint.com/all-products/projector-lift-si-h-l-300/

Suositushinta 5326,00 sis. ALV 25,5 %
